13.2. Image Scaling: Downsampling and Upsampling#

# Code from previous section
using Plots
Base.showable(::MIME"image/svg+xml", ::Plots.Plot) = false  # Disable SVG

using FileIO

to3Darray(img) = Float32[ getfield(pxl, fld) for pxl in img, fld in (:r,:g,:b) ]
toRGBarray(img) = RGB.(eachslice(img[:,:,:], dims=3)...)
imread(filename) = to3Darray(load(filename))
imshow(img; args...) = plot(toRGBarray(img); aspect_ratio=:equal, axis=nothing, border=:none, args...)

imshow (generic function with 1 method)

# Read sample image and convert to grayscale
A = imread("sample_photo.png")
B = sum(A, dims=3) / 3;

13.2.1. Downsampling by Averaging#

A common image operation is scaling, or changing the number of pixels in the image. Let’s first consider downsampling, which reduces the image size.

The simplest method would be to just pick every other pixel (e.g., A[1:2:end, 1:2:end, :]). However, this “pixel-skipping” approach can lead to jagged edges and weird visual artifacts (known as aliasing).

A better-looking and more common method is to average the pixels in small blocks. To downsample by a factor of 2, we can average the pixel values in each 2x2 block. This gives a single new pixel that better represents the original 2x2 area.

function image_downsample(A)
    # Get the size of the input image
    sz = size(A)

    # Calculate the size of the new image (half the size).
    # `÷` is integer division, which handles odd dimensions by flooring.
    sz2 = sz .÷ 2

    # We'll create an output array by selecting 2x2 blocks and averaging them.
    # `2sz2[1]` gives the largest even number <= sz[1]. This cleverly
    # handles odd dimensions by simply ignoring the last row/column.

    # Average the four pixels in each 2x2 block:
    B = (A[1:2:2sz2[1], 1:2:2sz2[2], :] .+  # Top-left pixels
         A[2:2:2sz2[1], 1:2:2sz2[2], :] .+  # Bottom-left pixels
         A[1:2:2sz2[1], 2:2:2sz2[2], :] .+  # Top-right pixels
         A[2:2:2sz2[1], 2:2:2sz2[2], :])    # Bottom-right pixels

    return B ./ 4  # Divide by 4 to get the average
end

# Let's repeatedly downsample the image 4 times
C = copy(B) # Start with our grayscale image
plts = []
for i = 1:4
    C = image_downsample(C)
    push!(plts, imshow(C, title="$(i) levels downsampled"))
    println("Level $i size: $(size(C))")
end

plot(plts..., layout=(2,2), titlefontsize=10, size=(600,500))

Level 1 size: (342, 456, 1)
Level 2 size: (171, 228, 1)
Level 3 size: (85, 114, 1)
Level 4 size: (42, 57, 1)

13.2.2. Upsampling with Bilinear Interpolation#

Going the other way, upscaling, is more of an art. We have to invent new pixel values where none existed before. We can’t perfectly recover the lost detail, but we can make a good guess by interpolating (or “blending”) between the pixel values we do have.

A common method is bilinear interpolation. For a 2x upscale, the process works like this:

  1. Create a new, larger array (almost 2x the size).

  2. Place the original pixels at every other row and column (the “corners”).

  3. Fill the gaps by averaging:

    • New pixels in the rows are the average of the two original pixels above and below them.

    • New pixels in the columns are the average of the two original pixels to their left and right.

    • The new pixels in the center are the average of the 4 original corner pixels.

Our function image_upsample implements this logic efficiently using array slicing.

function image_upsample(A)
    sz = size(A)
    # New size is 2N-1. (N pixels have N-1 gaps between them).
    B = zeros(Float32, 2sz[1]-1, 2sz[2]-1, sz[3])

    # 1. Place original pixels at `(1,1), (1,3), (3,1)` etc.
    B[1:2:end, 1:2:end, :] .= A

    # 2. Interpolate new rows (average pixels above and below)
    B[2:2:end-1, 1:2:end, :] .= (A[1:end-1,:,:] .+ A[2:end,:,:]) ./ 2

    # 3. Interpolate new columns (average pixels left and right)
    B[1:2:end, 2:2:end-1, :] .= (A[:,1:end-1,:] .+ A[:,2:end,:]) ./ 2

    # 4. Interpolate center points (average of the 4 original corners)
    B[2:2:end-1, 2:2:end-1, :] .= (A[1:end-1,1:end-1,:] .+ A[1:end-1,2:end,:]
                               .+  A[2:end,1:end-1,:] .+ A[2:end,2:end,:]) ./ 4
    return B
end

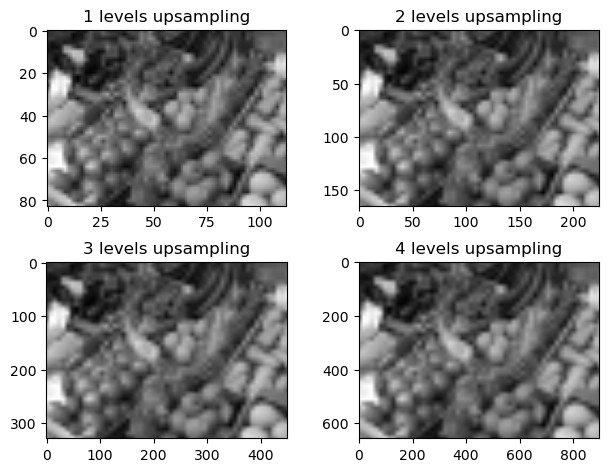

# Start from our smallest downsampled image 'C'
D = copy(C)
plts = []
for i = 1:4
    D = image_upsample(D)
    push!(plts, imshow(D, title="$(i) levels upsampled"))
    println("Level $i size: $(size(D))")
end
plot(plts..., layout=(2,2), titlefontsize=10, size=(600,500))

Level 1 size: (83, 113, 1)
Level 2 size: (165, 225, 1)
Level 3 size: (329, 449, 1)
Level 4 size: (657, 897, 1)

13.2.3. Information Loss#

The final upsampled image D has almost the same dimensions as our original grayscale image B. But as you can see, it’s much blurrier and less detailed.

This is expected! When we downsampled, we threw away 75% of the pixels at each step (averaging 4 pixels into 1). The total reduction was by a factor of \(2^4 = 16\) in each direction, or \(16 \times 16 = 256\) times fewer pixels! The upsampling process can only make a smooth guess at the missing data; it can’t magically recover the lost information.

# `D` is the result of 4x downsample + 4x upsample
# `B` is the original grayscale image
println("Original size: $(size(B))")
println("Final size:    $(size(D))")

plts = imshow.((B,D))
plot(plts..., title=["Original Grayscale" "Down/Upsampled x16"],
     layout=(1,2), titlefontsize=10, size=(600,250))

Original size: (684, 912, 1)
Final size:    (657, 897, 1)

13.2.4. Scaling by Arbitrary Ratios: Nearest-Neighbor#

What if we want to scale by a factor of 1.5, or 0.7? We can’t use our 2x2 averaging. We need a more general approach.

The simplest general method is Nearest-Neighbor Interpolation. The algorithm is:

  1. Create a new, blank image B with the desired target dimensions (new_height, new_width).

  2. Calculate the scaling ratios: \(r_y = \frac{\text{old\_height}}{\text{new\_height}}\) and \(r_x = \frac{\text{old\_width}}{\text{new\_width}}\).

  3. Loop through every single pixel (y_new, x_new) in the new image B.

  4. For each new pixel, find its corresponding coordinate in the old image: \(y_{old} = y_{new} \times r_y\) \(x_{old} = x_{new} \times r_x\)

  5. Since \(y_{old}\) and \(x_{old}\) will be floating-point numbers, we just round them to the nearest integer to find the nearest neighbor pixel in the old image.

  6. Copy the color from that nearest neighbor: B[y_new, x_new] = A[round(y_old), round(x_old)].

This method is fast, but as you’ll see, it can produce a very “blocky” or “pixelated” result when upscaling.

function image_scale_nearest(A, new_size)
    sz_old = (size(A, 1), size(A, 2))
    sz_new = (new_size[1], new_size[2])
    B = zeros(Float32, sz_new[1], sz_new[2])

    # Calculate scaling ratios
    ratio_y = sz_old[1] / sz_new[1]
    ratio_x = sz_old[2] / sz_new[2]

    for y_new in 1:sz_new[1]
        for x_new in 1:sz_new[2]
            # Find corresponding "source" pixel in the old image
            # We map pixel *centers* (e.g., 0.5) instead of edges (e.g., 0.0)
            # This prevents a half-pixel drift in the mapping.
            y_old = (y_new - 0.5) * ratio_y + 0.5
            x_old = (x_new - 0.5) * ratio_x + 0.5

            # Round to nearest integer and `clamp` to valid indices
            # (1 to height) and (1 to width) to avoid `BoundsError`
            y_old_int = clamp(round(Int, y_old), 1, sz_old[1])
            x_old_int = clamp(round(Int, x_old), 1, sz_old[2])

            # Copy the pixel value from the nearest neighbor
            B[y_new, x_new] = A[y_old_int, x_old_int]
        end
    end
    return B
end

image_scale_nearest (generic function with 1 method)

# Let's test it!
# 1. Downscale the original image 'B' to 1/15 its size
old_size = (size(B,1), size(B,2))
new_size = old_size .÷ 15
B_nearest_down = image_scale_nearest(B, new_size)

# 2. Upscale it back to the original size
B_nearest_up = image_scale_nearest(B_nearest_down, old_size)

# 3. Compare the original, our blurry Bilinear result, and the blocky Nearest-Neighbor result
plot(imshow(B, title="Original"),
     imshow(D, title="Bilin. Up/Down x16"),
     imshow(B_nearest_up, title="N-N Up/Down x15"),
     layout=(1,3), titlefontsize=10, size=(700,200))
